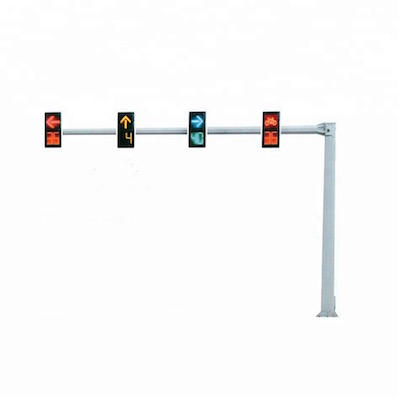

traffic light pole

Product Item : traffic pole
Category： Lighting Pole
Pole design;BS EN 40
Material:BS EN 10025 S275 / JIS G3101 SS400
Welding:BS 5135
Galvanizing:BS 729 / ISO 1461
Product description：Conical Tapered pole Height from 6m to 12m Flange mounted or planted type Variable arm length from 0.125m to 3.0m with single or double arm type Variable spigot size from 35mm to 60mm.
Order online

Hot dip galvanized Q235 steel with epoxy painted, no rust, no fade,no cracking or peeling in 30 years more.

Material	Q235 sheet
Pole Height	3-12M
Wall thickness	3-5 mm
Diameter	60-300mm
Flange	20-600mm
Arm type	single&double 1-3m
Surface treatment	Galvanization & Painted
Painting	expoy resin powder painted
Pole's shape	circle reducing
Wind resistance	30m/s
Material	Q235 Steel
Color	RAL color
Standard	DIN EN ISO
Grade	Q235 (default); or Q345, SUS201, SUS304 (if required)
Maintenance windows	1 pc with earthing unit inside
Foundation bolts	M24*950 L or J type (if required); price is excluded
No.s of bolts holes in flange plate	4 No.s of oval holes easily for aligement;
