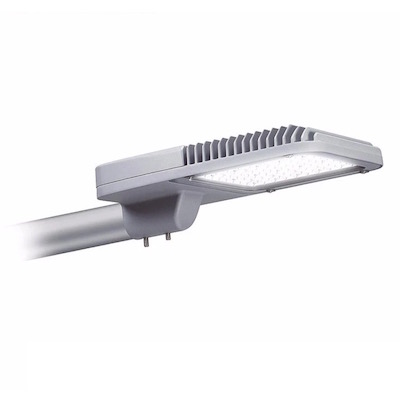

LM-ST-N

Product Item : LM-ST-N100
Category： Led Street light
APPLICATION:STREET
BODY:DIE CAST ALUMINUM
FINISH:SURFACE ANTI-AGEING ELECTROSTATIC SPRAY PROCESSING,SUPER RESISTANCE TO CORROSION
COLOR TEMPERATURE:3000-6500K

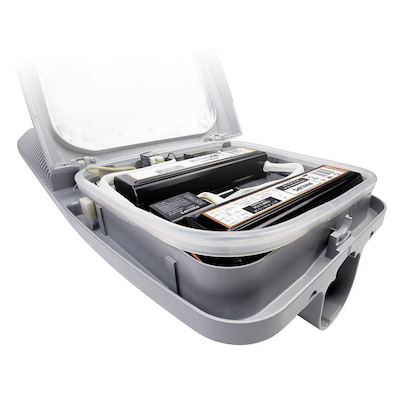

Product description：Simple modern design, user-friendly installation and easy maintenance structure, modular product portfolio planning, professional and reasonable optical design for road, expressway,bridge and square.
Order online

Details

DOWNLOAD SPECIFICATION

Model

Power

LED&MSPSP

Lens

Weight
(kg)

Dimension (mm)

Packing Size
(mm)

Installation Tube

LM-ST-N100

60W
120W

3* 32Pcs 3030 4P8S
3* 48Pcs 3030 8P6S

140*90°

4.50

422*318*132

470*370*200

LM-ST-

N150

120W
200W

5* 32Pcs 3030 4P8S
5* 48Pcs 3030 8P6S

140*90°

5.42

522*318*132

570*380*200

LM-ST-N200

200W
250W

6* 32Pcs 3030 4P8S
6* 48Pcs 3030 8P6S

140*90°

6.50

600*318*132

700*370*200

LM-ST-N250

200W
250W

8* 32Pcs 3030 4P8S
8* 48Pcs 3030 8P6S

140*90°

6.92

650*318*132

700*370*200

LM-ST-N300

250W
400W

10* 32Pcs 3030 4P8S
10* 48Pcs 3030 8P6S

140*90°

9.31

855*318*132

900*375*200

LEDS

Luxeon 3030 & Luxeon 5050

Color rendering index

NW: 70. WW: 80

Initial LED luminaire efficacy

Up to165 lm/W (depending on the version)

Luminous flux tolerance

+-7%

Correlated Color Temperature

Warm white (WW): 3000 K Neutral white (NW): 4000 K Cool white(CW) :5700K

Lumen maintenance at median useful life* 100000 h

min L80 up to L95

Temperature of Working Condition

-40-50℃

Ingress protection code

IP66

Driver

Philips Xitanium / Meanwell ELG HLG XLG upon on request

Mains voltage

AC220-240V 50/60HZ

Power Factor

PF≥0.95

Power Tolerance

+-11%

Control gear failure rate at median useful life 100000 h

10%

Surge protection

>10kv

Dimming

upon request for 0-10V Dali

Mech. impact protection code

IK08

BRP371 BRP372 BRP373 top quality outdoor led street lights with 3 years warranty

Advantages

Non-Polarized

Optical design by precise calculation, light distribute uniformly and symmetrically. While ensuring the same amount of luminous flux, reduce energy consumption.
The following figure is 100W of light distribution curve. IES file can be provided for simulation test. BRP371 BRP372 BRP373 top quality outdoor led street lights with 3 years warranty
