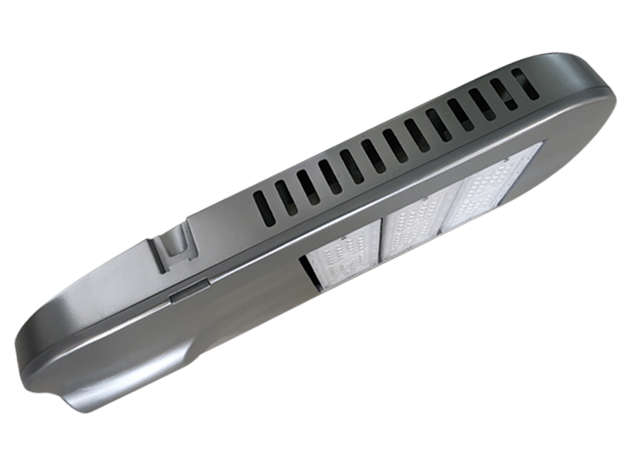

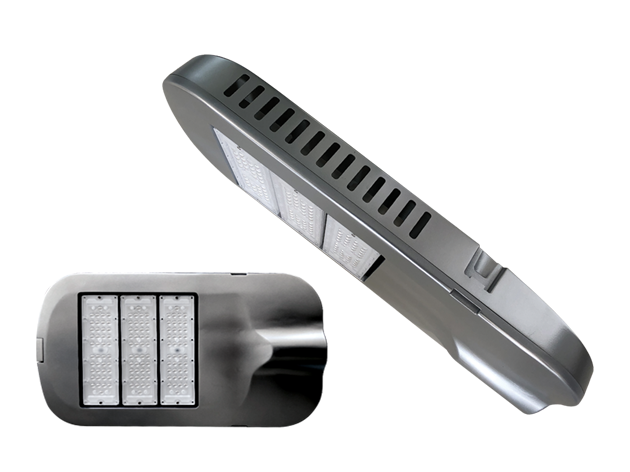

LM-ST-H

Product Item : LM-ST-H150
Category： Led Street light
APPLICATION:STREET
BODY:DIE CAST ALUMINUM
FINISH:SURFACE ANTI-AGEING ELECTROSTATIC SPRAY PROCESSING,SUPER RESISTANCE TO CORROSION
COLOR TEMPERATURE:3000-6500K
Product description：Simple modern design, user-friendly installation and easy maintenance structure, modular product portfolio planning, professional and reasonable optical design for road, expressway,bridge and square.
Order online

Product Code	LM-ST-H90	LM-ST-H120	LM-ST-H150	LM-ST-H200	LM-ST-H250
Rated Power	90W	120W	150W	200W	250W
Color Temperature	3000/4000/6000K	3000/4000/6000K	3000/4000/6000K	3000/4000/6000K	3000/4000/6000K
Luminous Flux	5500lm	8800lm	11000lm	16500lm	22000lm
Input Voltage	AC100-277V	AC100-277V	AC100-277V	AC100-277V	AC100-277V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF＞0.9	PF＞0.9	PF＞0.9	PF＞0.9	PF＞0.9
Color Rendering Index	＞80	＞80	＞80	＞80	＞80
Temperature of Working Condition	-35-50°C	-35-50°C	-35-50°C	-35-50°C	-35-50°C
Humidty of Working Condition	20-90%	20-90%	20-90%	20-90%	20-90%
LED Lifetime	50000h	50000h	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66	IP66	IP66
Installation Pipe Diameter	Φ60mm	Φ60mm	Φ60mm	Φ60mm	Φ60mm
Dimension	570336102mm	570336102mm	570336102mm	750336102mm	750336102mm
