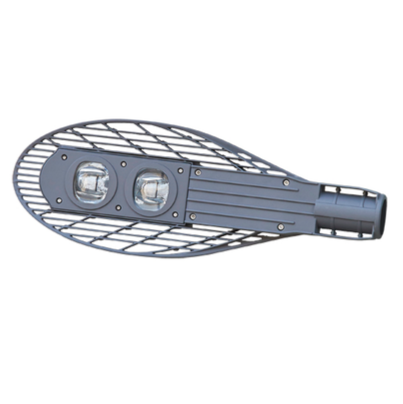

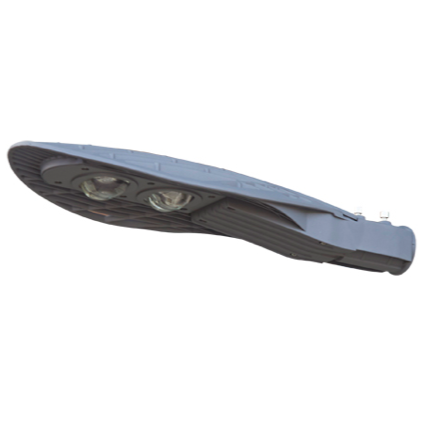

LM-ST-F

Product Item : LM-ST-F100
Category： Led Street light
APPLICATION:STREET
BODY:DIE CAST ALUMINUM
FINISH:SURFACE ANTI-AGEING ELECTROSTATIC SPRAY PROCESSING,SUPER RESISTANCE TO CORROSION
COLOR TEMPERATURE:3000-6500K
Product description：Simple modern design, user-friendly installation and easy maintenance structure, modular product portfolio planning, professional and reasonable optical design for road, expressway,bridge and square.
Order online

Product Code	LM-ST-F30	LM-ST-F50	LM-ST-F100	LM-ST-F150	LM-ST-F200
Rated Power	30W	50W	100W	150W	200W
Color Temperature	3000/4000/6000K	3000/4000/6000K	3000/4000/6000K	3000/4000/6000K	3000/4000/6000K
Luminous Flux	3300lm	5500lm	11000lm	16500lm	22000lm
Input Voltage	AC100-277V	AC100-277V	AC100-277V	AC100-277V	AC100-277V
Frequency Range	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Power Factor	PF＞0.9	PF＞0.9	PF＞0.9	PF＞0.9	PF＞0.9
Color Rendering Index	＞70	＞70	＞70	＞70	＞70
Temperature of Working Condition	-35-50°C	-35-50°C	-35-50°C	-35-50°C	-35-50°C
Humidty of Working Condition	20-90%	20-90%	20-90%	20-90%	20-90%
LED Lifetime	50000h	50000h	50000h	50000h	50000h
Protection Grade	IP66	IP66	IP66	IP66	IP66
Installation Pipe Diameter	Φ60mm	Φ60mm	Φ60mm	Φ60mm	Φ60mm
Dimension	51023080mm	62026080mm	70026080mm	90034080mm	95035080mm
