LM-AIO-060E

Product Item : LM-AIO-020E
Category： Solar Led Light
APPLICATION:STREET/GARDEN
POWER:SOLAR
FINISH:SURFACE ANTI-AGEING ELECTROSTATIC SPRAY PROCESSING,SUPER RESISTANCE TO CORROSION
LIGHT SOURCE:LED
Product description：Simple modern design, user-friendly installation and easy maintenance structure, modular product portfolio planning, professional and reasonable optical design for road, expressway,bridge and square.
Order online

Power		60W AIO	70W AIO	80W AIO	100W AIO
Model		LM-AIO-060E	LM-AIO-070E	LM-AIO-080E	LM-AIO-100
solar panel	Solar Max power	75W/18V USA Sunpower	90W/18V Germany solarworld	100W/18V USA Sunpower	130W/18V Germany solarworld
solar panel	Life time	25years
Battery	Type	Lithium battery
	Capacity	33AH/12V	40AH/12V	45AH/12V	80AH/12V
	Life time	8years
LED Lamp	LED Max power	60W/12V	70W/12V	80W/12V	100W/12V
	led chip	Bridgelux from USA
	lumen (LM)	7200lm	8600lm	9400lm	13600lm
	led chip	60pcs*45mil	72pcs*45mil	84pcs*45mil
	Life time	50,000hours
	Viewing Angle	120°
Mode	Working mode	Light control + Time control + APP control
Lighting	Charging(h)	5-6h	5-6h	5-6h	6-8h
Lighting	Discharging(h)	12hours/day, 5-7 rainy or cloudy days as backup
Work temp	range(°C)	-30°C~60°C
Color temp	range(k)	3000-6500K
Height	range (m)	7-9m	8-10m	8-10m	9-11m
Space	range (m)	25-35m	35-40m	35-40m	40m
Material		6063 aluminium alloy
Certificate		CE / ROHS / IP65
Warranty		5 years
Product	Size(mm)	120034045mm	108045345mm	108045345mm	157046045mm
Product	Size(mm)	120034045mm	108045345mm	108045345mm	157046045mm
Net Weight	N.W.(kgs)	17.5kgs	19.0kgs	20.0kgs	23.0kgs
Packing	Size(mm)	1345400200mm	1195500200mm	1195500200mm	1650530120mm Accessory box size: 400220320mm
Packing	Size(mm)	1345400200mm	1195500200mm	1195500200mm	1650530120mm Accessory box size: 400220320mm
G.W.	G.W.(kgs)	18.5kgs	21.0kgs	22.0kgs	26kgs+6kgs
APP	Y/N	Y	Y	Y	Y

PRODUCT DESCRIPTION

ALLTOP -Custom Solar Led Lights Manufacturer, Integrated Solar Street Light | All-4

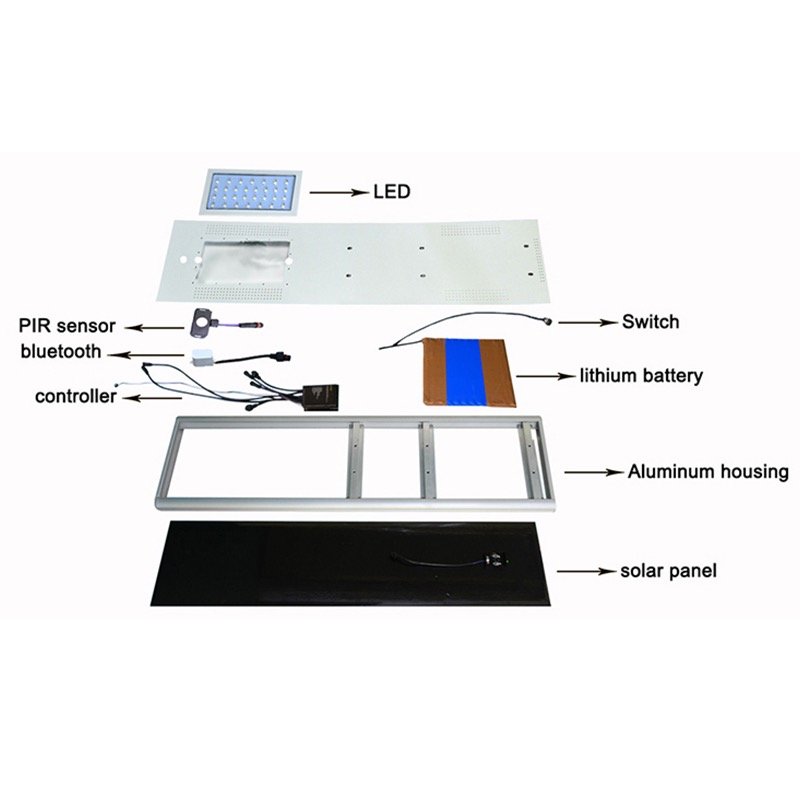

All-in-one Solar Street Light

All-in-one design and charged by solar, so the lighting kits are completely wireless and easy to be mounted. Widely arrange mount applications on wall, fence, tree, steps, etc. to light up your garden, hallway, flowerbeds, pillar, deck, yard, patio, or driveway and any other places

ALLTOP -Custom Solar Led Lights Manufacturer, Integrated Solar Street Light | All-5

High Quality LED Chip

The LED chip is a semiconductor chip that emits light and is not easily broken, so that its service life can reach 50,000 hours, while the ordinary incandescent lamp has a service life of only one thousand hours;

ALLTOP -Custom Solar Led Lights Manufacturer, Integrated Solar Street Light | All-6

Polycrystalline

Polycrystalline silicon solar panels, which are easier to manufacture, save power, and have low overall production costs.

Positive power tolerance: 0~+ 5W

100% EL double-inspection ensures modules are defects free

Modules binned by current to improve system performance

ALLTOP -Custom Solar Led Lights Manufacturer, Integrated Solar Street Light | All-7

Human body induction

Strong light environment (daytime) does not light up!

In the low light environment or at night, the sensor body detects the change of infrared heat energy caused by the movement of the human body and then triggers the lighting. Sensing diameter is farther and more sensitive.

ALLTOP -Custom Solar Led Lights Manufacturer, Integrated Solar Street Light | All-8

Waterproof swith

Simple operation, easy to use, automatic lighting at night, safer, more durable, more fashionable.

Lithium battery advantages

01

Green and environmental protection: no toxic heavy metal substances such as lead, mercury and cadmium are produced.
02

Lithium-ion battery can be charged and discharged at any time, unlike nickel-metal hydride, nickel-tin battery, must wait until the power is exhausted.
03
