| Model | Power | LED&MSPSP | Lens |
Weight (kg) |
Dimension (mm) |
Packing Size (mm) |
Installation Tube |

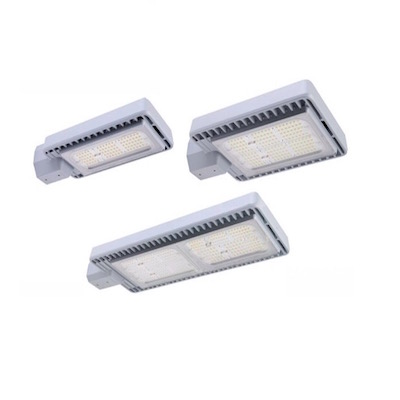

| SDS-B100 | 75-100w | 3*30Pcs 3030 5P6S |
142*90° 151*90 |
3.00 | 495*210*86 | 530*265*145 | 60 |
| SDS-B180 |
150W 180W |
6*30Pcs 3030 5P6S |
142*90° 151*90 |
3.95 | 495*295*86 | 530*350*145 | 60 |
| SDS-B350 |
180w 360w |
12*30Pcs 3030 5P6S |
142*90° 151*90 |
7.95 | 870*295*86 | 890*320*145 | 60 |
| LEDS | Luxeon 3030 & Luxeon 5050 | ||||||
| Color rendering index | NW: 70. WW: 80 | ||||||
| Initial LED luminaire efficacy | Up to165 lm/W (depending on the version) | ||||||
| Luminous flux tolerance | +-7% | ||||||
| Correlated Color Temperature | Warm white (WW): 3000 K Neutral white (NW): 4000 K Cool white(CW) :5700K | ||||||
| Lumen maintenance at median useful life* 100000 h | min L80 up to L95 | ||||||
| Temperature of Working Condition | -40-50℃ | ||||||
| Ingress protection code | IP66 | ||||||
| Driver | Philips Xitanium / Meanwell ELG HLG XLG upon on request | ||||||
| Mains voltage | AC220-240V 50/60HZ | ||||||
| Power Factor | PF≥0.95 | ||||||
| Power Tolerance | +-11% | ||||||
| Control gear failure rate at median useful life 100000 h | 0.1 | ||||||
| Surge protection | >10kv | ||||||
| Dimming | upon request for 0-10V Dali | ||||||
| Mech. impact protection code | IK08 | ||||||
Benefits
• High lumen efficacy 120 to 140 lumen per watt – much higher than currently available solutions.
• Unique functional design Sleek, light-weight and well-designed luminaire.
• Control and dimming ready Supports CityTouch connect application, 7-Pin Nema socket and standard outdoor dimming protocols.
• Value for money Most competitive product in its segment Perfect for renovation, upgrading projects. Best-in- class LED lighting technology at an unmatched, competitive price.
Features
• Excellent thermal managementoperating Temperature -40 to 50C
• Exposed OpticTransparent and weather resistant grade polycarbonate optics
• Multipule optic Options to meet all road and street lighting application requirements
• Lightweight housing design
• Available in 3000K, 40000K, 5000K and 5700K CCT options
Application
• Pedestrian Road
• Highway Road
• Residential Road
• Interchange
