Product Description
| LED | NICHIA/LUMILEDS/CREE |
| Driver | MeanWell(THD:≤15%) |
| Product name | 30w~90W led garden light |
| Basic dimensions | 500*500*880 mm |
| Power | 30W/40W/60W/80W/90W |
| Light source | LED |
| Power Factor | >0.95 |
| Input Voltage | AC100-240V 50/60Hz |
| Operating Temp | -30 to 65 degree |
| Lifespan | 60,000 hours |
| Warranty | 5 years |
| Certification | ENEC, TUV,CB,CE,RoHS, LM79,LM80,IP66,IK10 |
| Payment |
VISA,L/C,T/T,Western Union,Cash |
| Color Temperature | 3000K-4000K 5000K/6000K |
| CRI(Ra>) | 70 |
| Power(W) |
Luminous Efficacy(Lm/W)
|
Luminous Flux(LM) | Basic dimensions |
| 30W | 130 | 3900 | 450*450*618 mm |
| 40W | 130 | 5200 | 450*450*618 mm |
| 60W | 130 | 7800 | 450*450*618 mm |
| 80W | 130 | 10400 | 450*450*618 mm |
| 90w | 130 | 11700 |
450*450*618 mm |

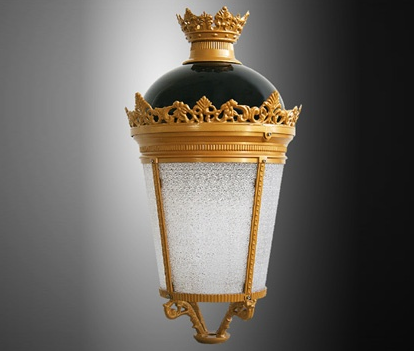

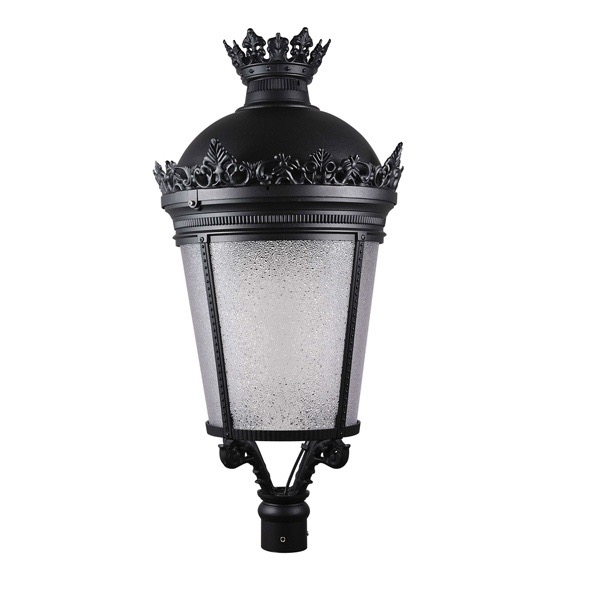

STRUCTURAL SPECIFICATIONS:
1)THE CROWN in casting aluminium fixed to the dome.
2) THE DOME is made of embossed aluminium sheet, assembly is held to CDG steel reflector by means of 1 aluminium steel mounting. Once removed the dome and control gear are easily attained.
3) THE OPTICAL BLOCK is make up of 3 parts sealed together so as to obtain a high degree of protection.
A control gear on the CDG steel sheet, once removed the dome and top crown the control gear are easily attained.
The diffuser in frost methacrylate.
Areflecter made in embossed CDG steel sheet(IP33), or the reflector in pure aluminium, stamped out in one piece and anodized which is fixed on the CDG steel sheet(IP65), the control gear is placed around the reflector.
4) THE BASE FLANGE in cast aluminium, top mounting for Φ26mm.
COLOR: On Request
PAINTED: Polyester Powder.
POWER: H.P.S.:250W maxi
PROTCTION DEGREE: IP33 or IP65 on request
SHOCK ENERGY: 2 Joules (methacrylate diffuse)
LAMP STEM HEIGHT: 3-6m
CLASS 1
CLASS 2 On Request
ATTENTION: Please contact us for catalogue and prices.
