  • Product Item : LM-GT-05
  • Category: Led Garden Light
  • APPLICATION:GARDEN
  • BODY:DIE CAST ALUMINUM
  • FINISH:SURFACE ANTI-AGEING ELECTROSTATIC SPRAY PROCESSING,SUPER RESISTANCE TO CORROSION
  • Product description:Simple modern design, user-friendly installation and easy maintenance structure, modular product portfolio planning, professional and reasonable optical design for road, expressway,bridge and square.
  • Order online
Product Description


ADVANTAGES & FEATURES OF LED GARDEN LIGHT:

  • Body:Die-cast Aluminum
  • Optical:Anodized aluminium reflector and PC diffuser.
  • Gear plate: Galvanized steel plate.
  • Finishing: Surface anti-ageing electrostatic spray processing,super resistance to corrosion.
  • Assembling height: 4-6m.
  • Fixing:Ø60mm/Ø80mm Pole.

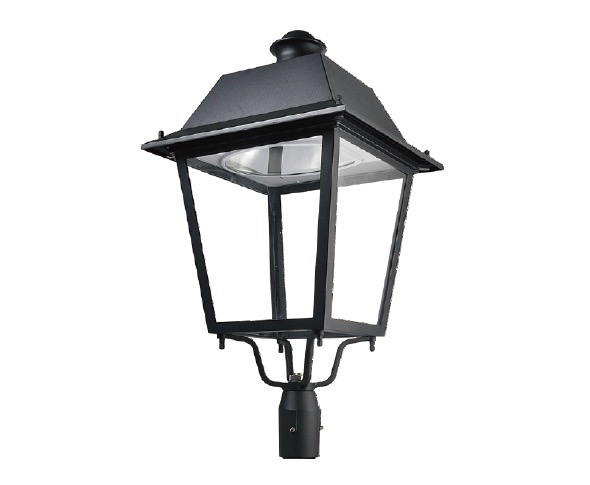

Product Led garden light (LM-GT-05)
Certification TUV ENEC, CB, CE, IK10, IP66, LM79, LM80
Warranty 5 years
Lamp body Die-cast aluminum
Light source Philips Led
Luminaire’s Efficiency 120~130Lm/W
Optical Anodized aluminium reflector and PC diffuser
Gear plate Galvanized steel plate
Finishing Surface anti-ageing electrostatic spray processing
Super resistance to corrosion
Installation height 4 - 6M
Fixing ø60mm or ø80mm pole



Power Input voltage Light
Source
Luminous
Flux
Luminaire’s
Efficiency
Product size N.W G.W Packing (mm)
30W 100-277VAC
50-60HZ
Philips
Led
3900Lm 130Lm/W L450*W450*H816mm 5.8kg 6.8kg L510*W510*H180mm
40W 100-277VAC
50-60HZ
Philips
Led
5200Lm 130Lm/W L450*W450*H816mm 5.8kg 6.8kg L510*W510*H180mm
60W 100-277VAC
50-60HZ
Philips
Led
7800Lm 130Lm/W L450*W450*H816mm 5.8kg 6.8kg L510*W510*H180mm
80W 100-277VAC
50-60HZ
Philips
Led
10400Lm 130Lm/W L450*W450*H816mm 6.2kg 7.2kg L510*W510*H180mm
90W 100-277VAC
50-60HZ
Philips
Led
11700Lm 130Lm/W L450*W450*H816mm 6.2kg 7.2kg L510*W510*H180mm


Waterproof Security Super Bright Outdoor IP66 Garden Light With NEMA 7 PIN Sensor SocketWaterproof Security Super Bright Outdoor IP66 Garden Light With NEMA 7 PIN Sensor Socket
