Home > Products > Led Street light > LM-ST-T

  • LM-ST-T
  • LM-ST-T
  • LM-ST-T
LM-ST-TLM-ST-TLM-ST-T

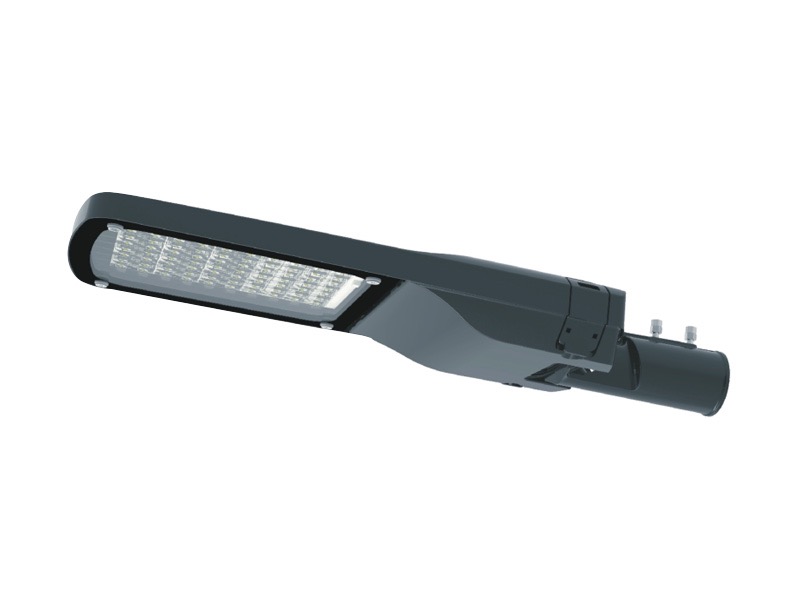

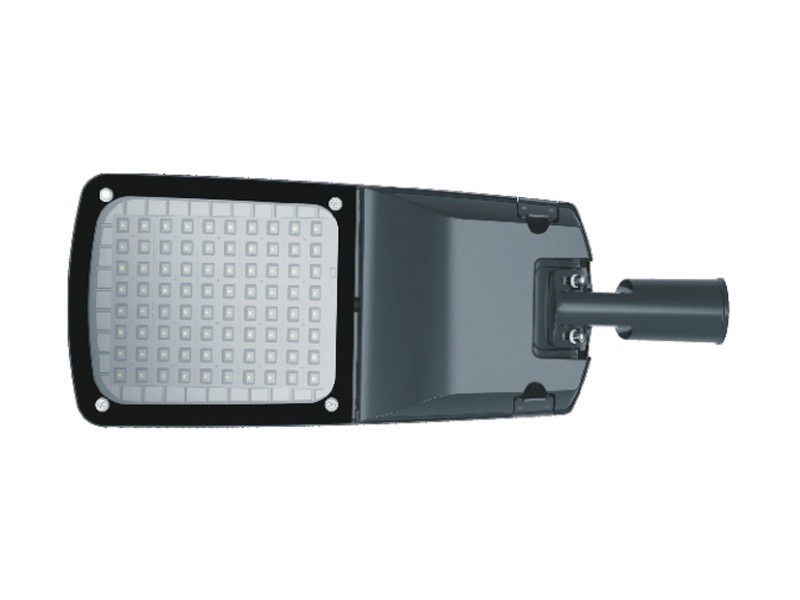

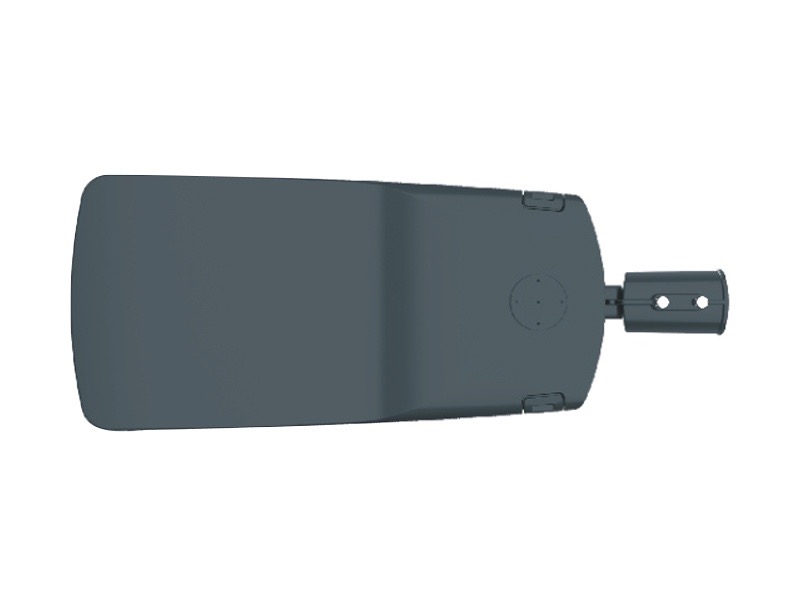

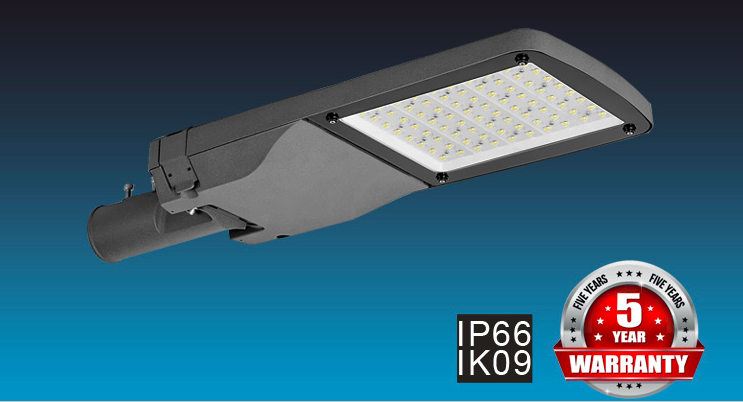

LM-ST-T

  • Product Item : LM-ST-T100
  • Category: Led Street light
  • APPLICATION:STREET
  • BODY:DIE CAST ALUMINUM
  • FINISH:SURFACE ANTI-AGEING ELECTROSTATIC SPRAY PROCESSING,SUPER RESISTANCE TO CORROSION
  • COLOR TEMPERATURE:3000-6500K
  • Product description:Simple modern design, user-friendly installation and easy maintenance structure, modular product portfolio planning, professional and reasonable optical design for road, expressway,bridge and square.
  • Order online
Product Description

LED street luminaires meet the following industry standards:

1.IESNA Illuminating Engineering society of North America – Lighting Handbook.

2.IES LM-80-08: Approved Method for Measuring Lumen Maintenance of LED Light Sources.

3.IEC 60598-2-3: Luminaires – Particular requirements - Luminaires for road and street lighting.

4.IEC 60529 :Degrees of protection provided by enclosures (IP 66) .

5.IEC 62262 :Degrees of protection provided by enclosures for electrical equipment against external mechanical impacts (IK 10) .

Wireless Control Smart Street Light Feature:

1.To meet the demands of build a modern intelligent city.

2.The luminaires be fully compatible with future LED upgrades when they become available. It have a modular design to upgrade / replace with new LED modules or LED drivers at site.

3.The luminaires have space available inside for communications antenna or equipment to be integrated into the luminaires for future tele-management control system implementation.

environment



Smart WIFI Camera LED Street Light Specifications

Power

60W

80W

100W

120W

LED Brand

3030/5050

3030/5050

3030/5050

3030/5050

Driver

Philips

Philips

Philips

Philips

Luminous Flux

7200lm/9000lm

9600lm/12000lm

12000lm/15000lm

14400lm/18000lm

IP Code

IP65/IP66

IP65/IP66

IP65/IP66

IP65/IP66

IK Code

IK09

IK09

IK09

IK09

CRI

>70

>70

>70

>70

PF

>0.95

>0.95

>0.95

>0.95

Surge Protection

>10KV

>10KV

>10KV

>10KV

 2018 New design smart city public lighting retrofit 120W led street light

2018 New design smart city public lighting retrofit 120W led street light

2018 New design smart city public lighting retrofit 120W led street light
