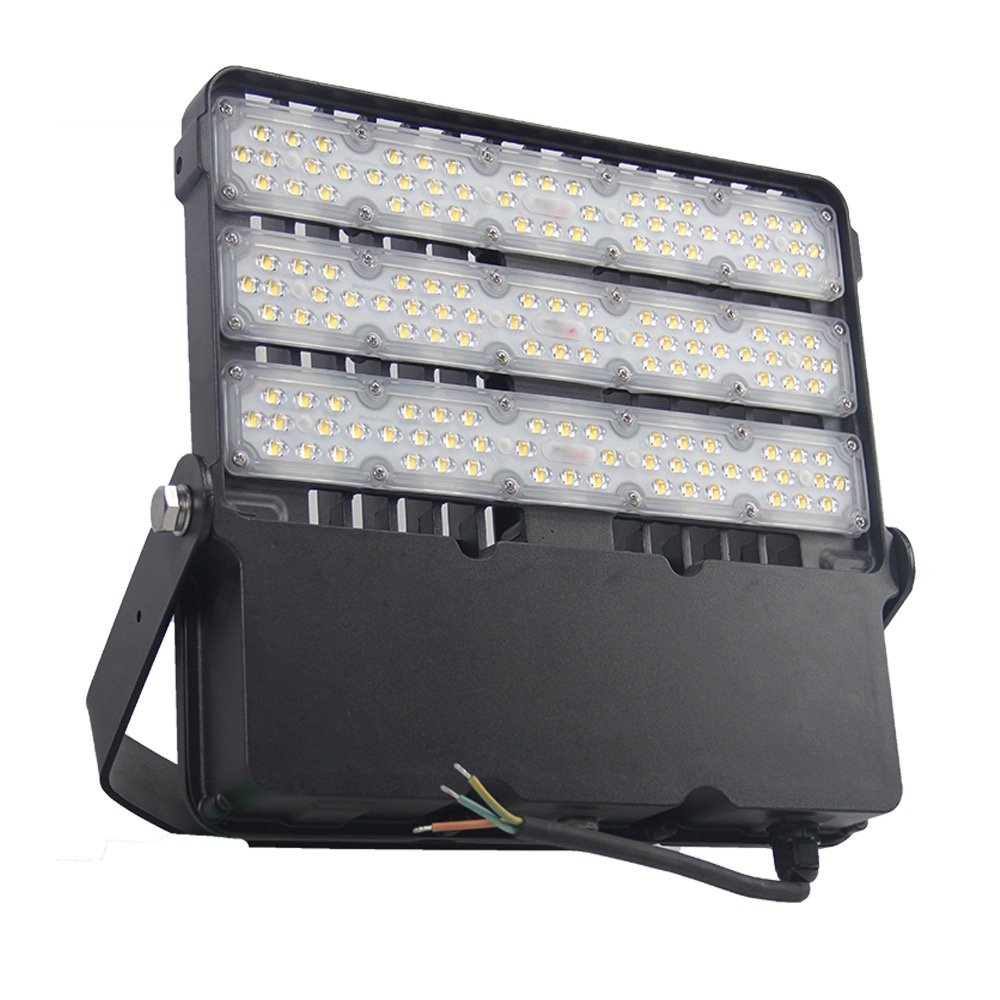

LM-FL-A

  • Product Item : LM-FL-A150
  • Category: Led Flood Light
  • APPLICATION:STREET
  • BODY:DIE CAST ALUMINUM
  • FINISH:SURFACE ANTI-AGEING ELECTROSTATIC SPRAY PROCESSING,SUPER RESISTANCE TO CORROSION
  • Product description:Simple modern design, user-friendly installation and easy maintenance structure, modular product portfolio planning, professional and reasonable optical design for road, expressway,bridge and square.
  • Attachment Order online


guangdong China 55000 lumens 50w 100w 150w 200 watt square exterior 5 years warranty 400w flood light led 100w

v   High efficiency Tai Wan Mean Well Driver

v   High Quality Lumileds/CREE Chips 3030 2D, up to 130lm/watt

v   IP66 waterproof Rated, IK08, 4KV/10KV Surge protect

v   Universal input voltage from AC90-305V, 50/60Hz

v   Safety operating voltage from DC24-DC46V

v   Pass the 4000V high voltage testing by TUV&ETL

v   Voltage Leakage is less than 10V during operating

v   Extremely low maintenance(safety&cost aspect)

v   Durable structure&stable performance

v   Comparing to traditional Metal halide lamps can save energy 60%-70%.

v   No flash, No RF, No ultraviolet radiation

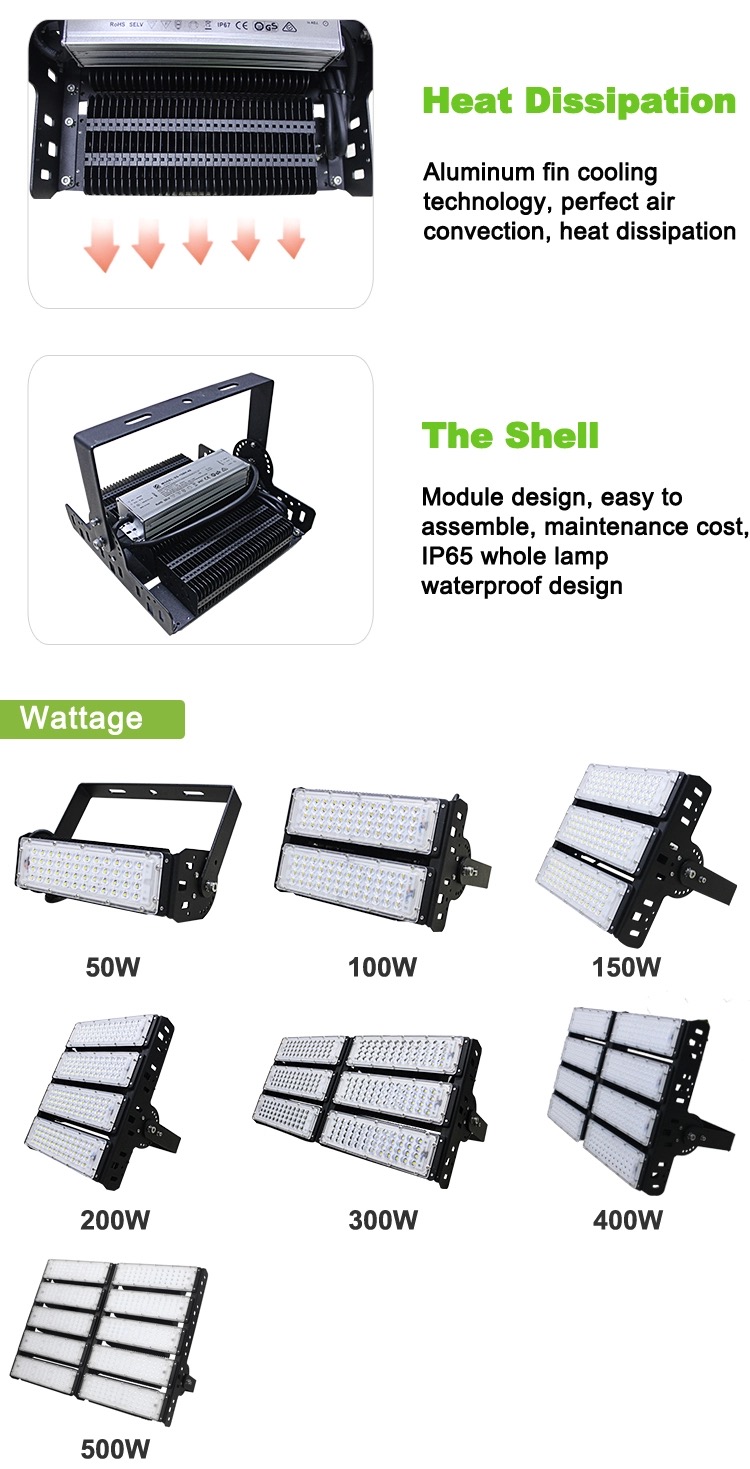

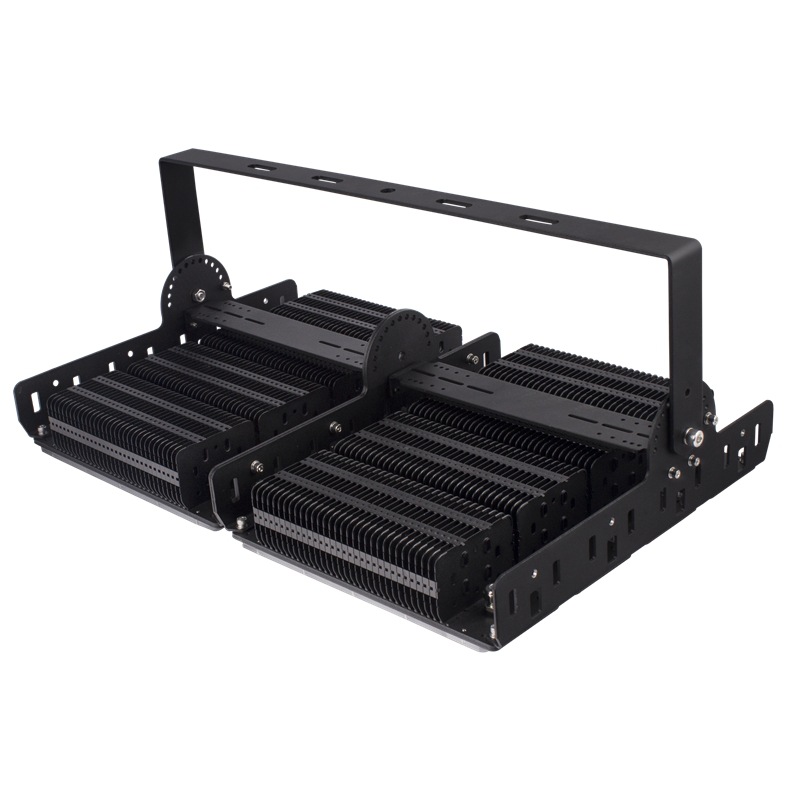

v   Vertical Aluminum heat sink, benefit to heat dissipation

v   CE/RoHS approval

V   Smart function: 0-10V Dimming, PMW signal, Timing optional, Light sensor



LED Flood light  Specifications
Model LM-FL-A50 LM-FL-A100 LM-FL-A150 LM-FL-A200 LM-FL-A300 LM-FL-A400
Input Voltage 100-305 V AC
Power 50W 100W 150W 200W 300W 400W
Size

L315*W90

*H129

L315*W180

*H129

L315*W270

*H130

L315*W360

*H130

L599*W270

*H130

L599*W360

*H130

Lumens 5500-6000LM 11000-12000LM 16500-18000LM 22000-24000LM 33000-36000LM 44000-48000LM
CRI Ra>80
Power Factor >0.95
Light efficiency 110-120lm/W
LED chip LUMILEDS LED chips
LED driver brand SOSEN, Meanwell driver
Waterproof IP65
Housing material Excellent Aluminum +PC lens
Work temperature -30°C ~ +50°C
Lifespan 50000 hours
warranty

3-5years

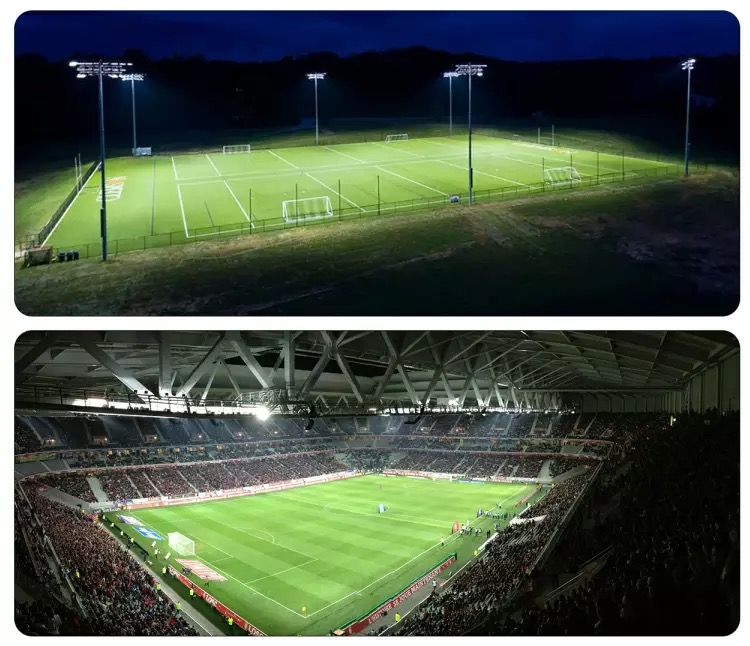

Application
