Model # |
LM-FL-UFO80 |
LM-FL-UFO100 |
LM-FL-UFO150 |
LM-FL-UFO180 |
LM-FL-UFO200 |
LM-FL-UFO240 |
|
|
Input Power: |
80W |
100W |
150W |
180W |
200W |
240W |
|
|
LED Source: |
High Lumen Lumileds SMD 3030 |
||||||
|
Drive Brand: |
quality CE, CB, TUV, SAA, ROHS, IP65 approved, isolated and current constant driver |
||||||
|
Input Voltage: |
AC100~305V 50/60HZ PFC>0.95 |
||||||
|
Housing Material: |
High Heat-conductive Die Casting Aluminum Heat Sink Integrated |
||||||
|
Lamp Size: |
φ280*150MM |
φ280*150MM |
φ340*165MM |
φ340*165MM |
φ390*205MM |
φ400*180MM |
|
|
LED Quantity: |
133pcs |
133pcs |
210pcs |
210pcs |
266pcs |
266pcs |
|
|
Luminous Efficiency: |
>138lm/w |
>130lm/w |
>135lm/w |
>125lm/w |
>130lm/w |
>120lm/w |
|
|
Luminous Flux: |
11108LM |
13390LM |
20625LM |
22350LM |
26030LM |
28853LM |
|
|
Color Temp: |
2700K~6500K optional |
||||||
|
IP Rating: |
IP65 |
||||||
|
Viewing Angle: |
60°/90°/120° Degree PC Lens |
||||||
|
Lifespan: |
70,000hrs |
||||||
|
Warranty: |
5 years |
||||||
v High efficiency Tai Wan Mean Well Driver
v High Quality Lumileds Chips 3030 2D, up to 130lm/watt, CRI>80
v IP65 waterproof Rated
v Universal input voltage from AC90-305V, 50/60Hz
v Safety operating voltage from DC24-DC46V
v Pass the 4000V high voltage testing by TUV&ETL
v Voltage Leakage is less than 10V during operating
v Extremely low maintenance(safety&cost aspect)
v Durable structure&stable performance
v Comparing to traditional Metal halide lamps can save energy 60%-70%.
v No flash, No RF, No ultraviolet radiation

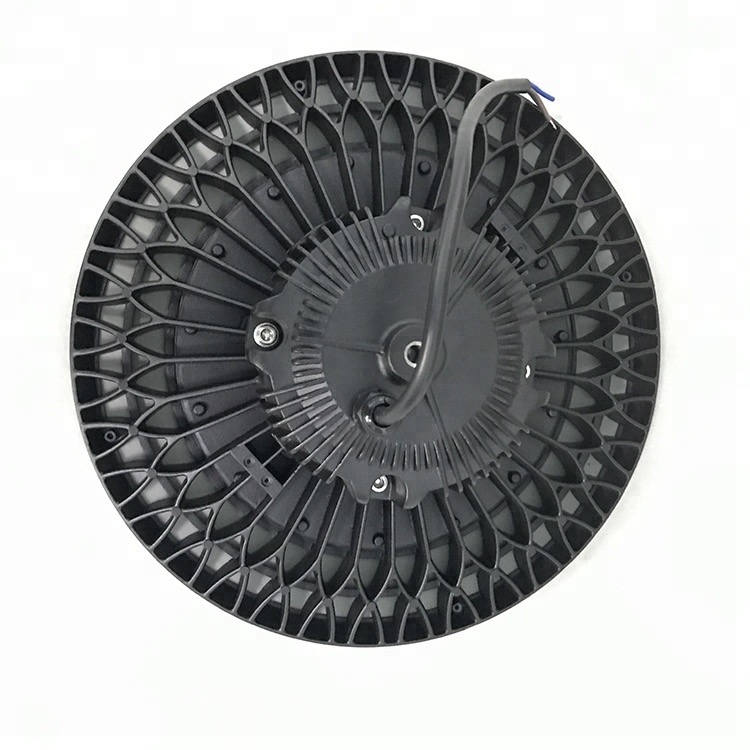

v Vertical Aluminum heat sink, benefit to heat dissipation
v CE/RoHS approval
V Smart function: 0-10V Dimming, PMW signal, Timing optional
